Choix d'une suspension de membrane haut-parleur

Diamètre cône

mesurer en premier le diamètre de la membrane, qui est le cone généralement en carton.

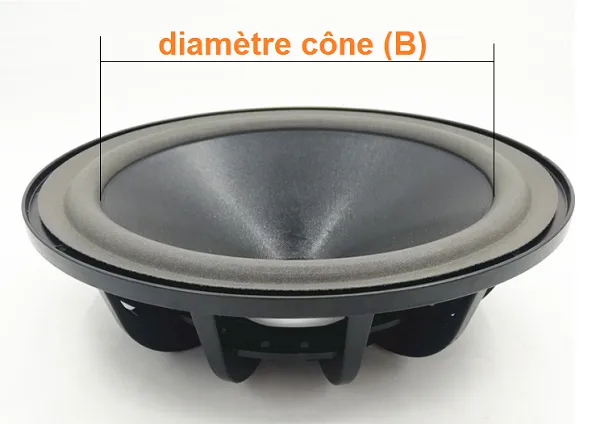

Pour trouver la taille de suspension adaptable à vos haut-parleurs il faut mesurer le diamètre du cone (membrane) B
- Commencez par enlever complètement  les restes de l'ancienne suspension et mesurez le diamètre de la membrane au millimètre près.

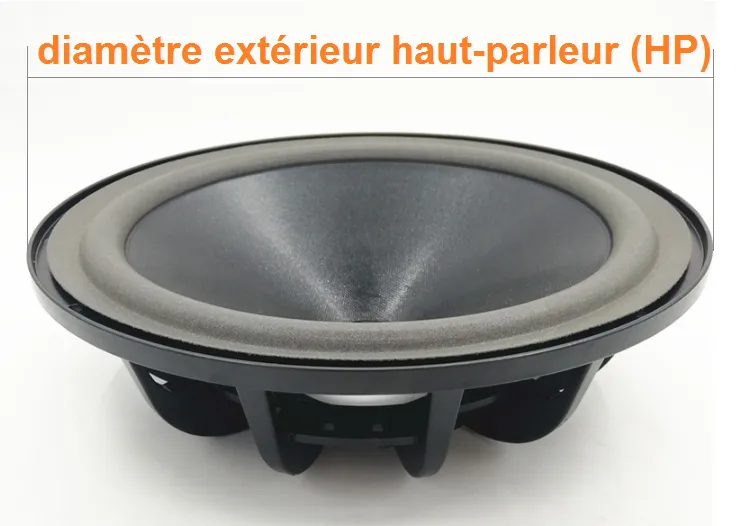

Diamètre intérieur châssis

Mesure du diamètre intérieur châssis du haut-parleur

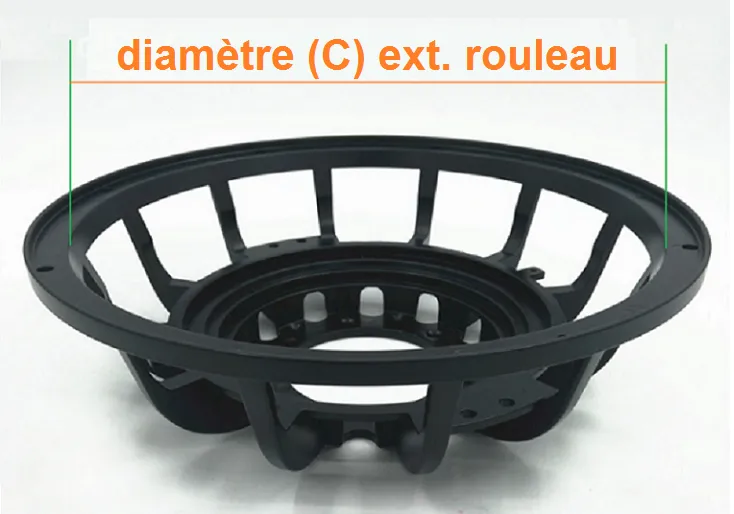

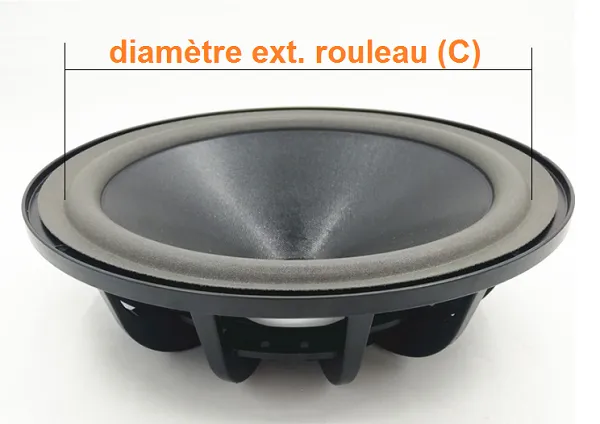

Mesurez maintenant le diamètre intérieur du châssis, comme sur la photo. C'est la mesure C. Avec les mesures B et C recherchez dans les tableaux ci dessous les dimensions B et C se  rapprochant le plus possible de vos mesures. On admet une tolérance de quelques millimètres.

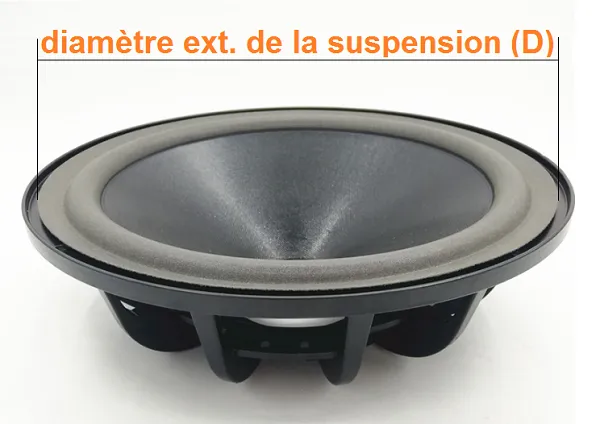

SHP-50

Dimension de la suspension
A = 3.3 cm
B = 3.8 cm
C = 4.7 cm
D = 5.0 cm

SHP-83

Dimension de la suspension
A = 5.2 cm
B = 6.0 cm
C = 7.4 cm
D = 8.3 cm

SHP-84

Dimension de la suspension
A = 5.9 cm
B = 6.4 cm
C = 7.3 cm
D = 8.5 cm

SHP-88

Dimension de la suspension
A = 5.8 cm
B = 6.4 cm
C = 7.9 cm
D = 8.8 cm

SHP-89

Dimension de la suspension
A = 6.1 cm
B = 6.8 cm
C = 8.4 cm
D = 8.9 cm

SHP-95

Dimension de la suspension
A = 6.3 cm
B = 7.3 cm
C = 8.8 cm
D = 9.5 cm

SHP-96

Dimension de la suspension
A = 6.3 cm
B = 7.3 cm
C = 9.0 cm
D = 9.8 cm

SHP-97

Dimension de la suspension
A = 6.3 cm
B = 7.1 cm
C = 9.1 cm
D = 9.7 cm

SHP-98

Dimension de la suspension
A = 7.2 cm
B = 7.7 cm
C = 8.8 cm
D = 9.8 cm

SHP-99

Dimension de la suspension
A = 6.5 cm
B = 7.4 cm
C = 9.0 cm
D = 9.8 cm

SHP-99C

Dimension de la suspension
A = 6.5 cm
B = 7.4 cm
C = 9.0 cm
D = 9.8 cm

SHP-100

Dimension de la suspension
A = 5.5 cm
B = 6.3 cm
C = 9.2 cm
D = 10.0 cm

SHP-101

Dimension de la suspension
A = 6.7 cm
B = 7.5 cm
C = 9.2 cm
D = 10.0 cm

SHP-105

Dimension de la suspension
A = 7.6 cm
B = 8.3 cm
C = 9.9 cm
D = 10.5 cm

SHP-116

Dimension de la suspension
A = 7.6 cm
B = 8.6 cm
C = 10.5 cm
D = 11.5 cm

SHP-116C

Dimension de la suspension
A = 7.2 cm
B = 8.0 cm
C = 10.7 cm
D = 11.7 cm

SHP-117C

Dimension de la suspension
A = 8.1 cm
B = 8.6 cm
C = 10.7 cm
D = 11.7 cm

SHP-121

Dimension de la suspension
A = 8.0 cm
B = 8.8 cm
C = 10.8cm
D = 12.3 cm

SHP-122C

Dimension de la suspension
A = 8.0 cm
B = 9.0 cm
C = 11.0cm
D = 12.3 cm

SHP-123

Dimension de la suspension
A = 8,5 cm
B = 9,0 cm
C = 10,8 cm
D = 12,7 cm

SHP-124

Dimension de la suspension
A = 8.0 cm
B = 8,6 cm
C = 10,3 cm
D = 12,3 cm

SHP-125

Dimension de la suspension
A = 9.0 cm
B = 9,5 cm
C = 11,1 cm
D = 12,5 cm

SHP-125C

Dimension de la suspension
A = 8.7 cm
B = 9,3 cm
C = 11,3 cm
D = 12,5 cm

SHP-126

Dimension de la suspension
A = 8,7 cm
B = 9,5 cm
C = 11,5 cm
D = 12,6 cm

SHP-127

Dimension de la suspension
A = 8,0 cm
B = 9,0 cm
C = 11,7 cm
D = 12,6 cm

SHP-128

Dimension de la suspension
A = 8.8 cm
B = 9.6 cm
C = 11.4 cm
D = 12.5 cm

SHP-129

Dimension de la suspension
A = 8.9 cm
B = 9.8 cm
C = 12.3 cm
D = 13.0 cm

SHP-130

Dimension de la suspension
A = 8.8 cm
B = 9.8 cm
C = 11.9 cm
D = 13.0 cm

SHP-138C

Dimension de la suspension
A = 9.3 cm
B = 10.2 cm
C = 12.8 cm
D = 13.8 cm

SHP-141

Dimension de la suspension
A = 11.0 cm
B = 11.6 cm
C = 13.2 cm
D = 14.1cm

SHP-147

Dimension de la suspension
A = 10.5 cm
B = 11.3 cm
C = 13.1 cm
D = 14.7 cm

SHP-149

Dimension de la suspension
A = 11.2 cm
B = 11.9 cm
C = 13.7 cm
D = 14.9 cm

SHP-150

Dimension de la suspension
A = 10.4 cm
B = 11.3 cm
C = 13,0 cm
D = 14.8 cm

SHP-151

Dimension de la suspension
A = 10.6 cm
B = 12.0 cm
C = 14.4 cm
D = 15.8 cm

SHP-152

Dimension de la suspension
A = 10.3 cm
B = 11.0 cm
C = 13.3 cm
D = 15.2 cm

SHP-152C

Dimension de la suspension
A = 10.1 cm
B = 11.2 cm
C = 13.7 cm
D = 15.2 cm

SHP-153C

Dimension de la suspension
A = 10.5 cm
B = 11.5 cm
C = 14.0 cm
D = 15.5 cm

SHP-154

Dimension de la suspension
A = 11.0 cm
B = 11.9 cm
C = 14,2 cm
D = 15.3 cm

SHP-155

Dimension de la suspension
A = 10.8 cm
B = 12.2 cm
C = 14.1 cm
D = 15.7 cm

SHP-156

Dimension de la suspension
A = 11.1 cm
B = 12.3 cm
C = 14.3 cm
D = 15.5 cm

SHP-157

Dimension de la suspension
A = 10.8 cm
B = 11.9 cm
C = 14.0 cm
D = 15.8 cm

SHP-158

Dimension de la suspension
A = 11.0 cm
B = 12.0 cm
C = 14.0 cm
D = 16.0cm

SHP-159

Dimension de la suspension
A = 11.2 cm
B = 12.0 cm
C = 14.3 cm
D = 15.8 cm

SHP-160

Dimension de la suspension
A = 11.2 cm
B = 12.0 cm
C = 14.5 cm
D = 16.0 cm

SHP-164

Dimension de la suspension
A = 11.2cm
B = 12.5 cm
C = 15.0 cm
D = 16.4 cm

SHP-164C

Dimension de la suspension
A = 11.5 cm
B = 12.3 cm
C = 15.3 cm
D = 16.5 cm

SHP-176C

Dimension de la suspension
A = 12.3 cm
B = 13.8 cm
C = 16.2 cm
D = 17.6 cm

SHP-176

Dimension de la suspension
A = 12.0 cm
B = 14.0 cm
C = 16.2 cm
D = 17.6 cm

SHP-185

Dimension de la suspension
A = 12,7 cm
B = 14,7 cm
C = 16,5 cm
D = 18,5 cm

SHP-192

Dimension de la suspension
A = 14.5 cm
B = 15.3 cm
C = 18.0 cm
D = 19.4 cm

SHP-192T

Dimension de la suspension
A = 14.2 cm
B = 15.2 cm
C = 18.0 cm
D = 19.2 cm

SHP-193

Dimension de la suspension
A = 14.7 cm
B = 15.5 cm
C = 17.8 cm
D = 19.6 cm

SHP-194

Dimension de la suspension
A = 14.6 cm
B = 15.7 cm
C = 17.8 cm
D = 19.5 cm

SHP-194S

Dimension de la suspension
A = 15.0 cm
B = 15.8 cm
C = 18.1 cm
D = 19.5 cm

SHP-195C

Dimension de la suspension
A = 13.8 cm
B = 14.9 cm
C = 17.8 cm
D = 19.5 cm

SHP-195

Dimension de la suspension
A = 13.8 cm
B = 15.0 cm
C = 18.0 cm
D = 19,7 cm

SHP-196

Dimension de la suspension
A = 13.8 cm
B = 15.0 cm
C = 18.1 cm
D = 19.7 cm

SHP-196S

Dimension de la suspension
A = 13.8 cm
B = 15.0 cm
C = 17.8 cm
D = 19.5 cm

SHP-197

Dimension de la suspension
A = 13.8 cm
B = 15.0 cm
C = 18.0 cm
D = 19.8 cm

SHP-198

Dimension de la suspension
A = 13.6 cm
B = 14.7 cm
C = 17.7 cm
D = 19.8 cm

SHP-199

Dimension de la suspension
A = 11.5 cm
B = 13.2 cm
C = 18.0 cm
D = 20.5 cm

SHP-200

Dimension de la suspension
A = 15.0 cm
B = 16.1 cm
C = 18.7 cm
D = 20.0 cm

SHP-201

Dimension de la suspension
A = 14.5 cm
B = 15.4 cm
C = 19.0 cm
D = 20.2 cm

SHP-202

Dimension de la suspension
A = 14.1 cm
B = 14.7 cm
C = 18.8 cm
D = 20.2 cm

SHP-203

Dimension de la suspension
A = 14.5 cm
B = 15.5 cm
C = 18.1 cm
D = 20.2 cm

SHP-204

Dimension de la suspension
A = 14.1 cm
B = 15.2 cm
C = 19.0 cm
D = 20.3 cm

SHP-217

Dimension de la suspension
A = 17,1 cm
B = 19.2 cm
C = 20.4 cm
D = 21.7 cm

SHP-220

Dimension de la suspension
A = 17.0 cm
B = 18.0 cm
C = 21.0 cm
D = 22.5 cm

SHP-228

Dimension de la suspension
A = 16.5 cm
B = 18.3 cm
C = 20.7 cm
D = 22.8 cm

SHP-240

Dimension de la suspension
A = 17.5 cm
B = 18.5 cm
C = 22.5 cm
D = 24.0 cm

SHP-245

Dimension de la suspension
A = 17.6 cm
B = 19.0 cm
C = 23.0 cm
D = 24.8 cm

SHP-246

Dimension de la suspension
A = 17.8 cm
B = 19.3 cm
C = 22.8 cm
D = 24.6 cm

SHP-246C

Dimension de la suspension
A = 17.8 cm
B = 19.2 cm
C = 22.3 cm
D = 24.5 cm

SHP-246HF

Dimension de la suspension
A = 17.7 cm
B = 19.3 cm
C = 23.0 cm
D = 25.5 cm

SHP-247

Dimension de la suspension
A = 18.1 cm
B = 19.3 cm
C = 22.5 cm
D = 24.7 cm

SHP-248

Dimension de la suspension
A = 18.1 cm
B = 19.4 cm
C = 22.7 cm
D = 24.7 cm

SHP-250

Dimension de la suspension
A = 17.5 cm
B = 19.5 cm
C = 23.0 cm
D = 25.0 cm

SHP-250C

Dimension de la suspension
A = 18.0cm
B = 19.5 cm
C = 23.0 cm
D = 24.5 cm

SHP-250R

Dimension de la suspension
A = 18.2 cm
B = 19.3 cm
C = 23.5 cm
D = 25.0 cm

SHP-252

Dimension de la suspension
A = 16.0 cm
B = 18.0 cm
C = 23.1 cm
D = 25.2 cm

SHP-254

Dimension de la suspension
A = 14.5 cm
B = 16.5 cm
C = 23.7 cm
D = 25.3 cm

SHP-255

Dimension de la suspension
A = 17.0 cm
B = 19.5 cm
C = 22.0 cm
D = 25.5 cm

SHP-258

Dimension de la suspension
A = 19.5 cm
B = 21.0 cm
C = 24.8 cm
D = 25.8 cm

SHP-260

Dimension de la suspension
A = 20.3 cm
B = 21.4 cm
C = 24.6 cm
D = 26.0 cm

SHP-268

Dimension de la suspension
A = 20.3 cm
B = 21.4 cm
C = 25.2 cm
D = 26.8 cm

SHP-288

Dimension de la suspension
A = 19.5 cm
B = 21.6 cm
C = 26.8 cm
D = 28.8 cm

SHP-294

Dimension de la suspension
A = 22.0 cm
B = 23.4 cm
C = 26.7 cm
D = 29.4 cm

SHP-295

Dimension de la suspension
A = 22.0 cm
B = 23.5 cm
C = 27.0 cm
D = 29.5 cm

SHP-295C

Dimension de la suspension
A = 21.5 cm
B = 23.5 cm
C = 27.0 cm
D = 29.5 cm

SHP-296

Dimension de la suspension
A = 23.2 cm
B = 24.3 cm
C = 28.2 cm
D = 29.6 cm

SHP-297

Dimension de la suspension
A = 23.2 cm
B = 24.6 cm
C = 27.6 cm
D = 29.7 cm

SHP-298

Dimension de la suspension
A = 22.8 cm
B = 23.9 cm
C = 27.1 cm
D = 29.7 cm

SHP-299

Dimension de la suspension
A = 22.7 cm
B = 24.0 cm
C = 28.0 cm
D = 29.8 cm

SHP-380

Dimension de la suspension
A = 28.5 cm
B = 30.5 cm
C = 34.5 cm
D = 37.5 cm

SHP-380R

Dimension de la suspension
A = 29.0 cm
B = 30.7 cm
C = 35.2 cm
D = 37.0 cm

SHP-460

Dimension de la suspension
A = 36.2 cm
B = 38.0 cm
C = 42.0 cm
D = 45.0 cm
